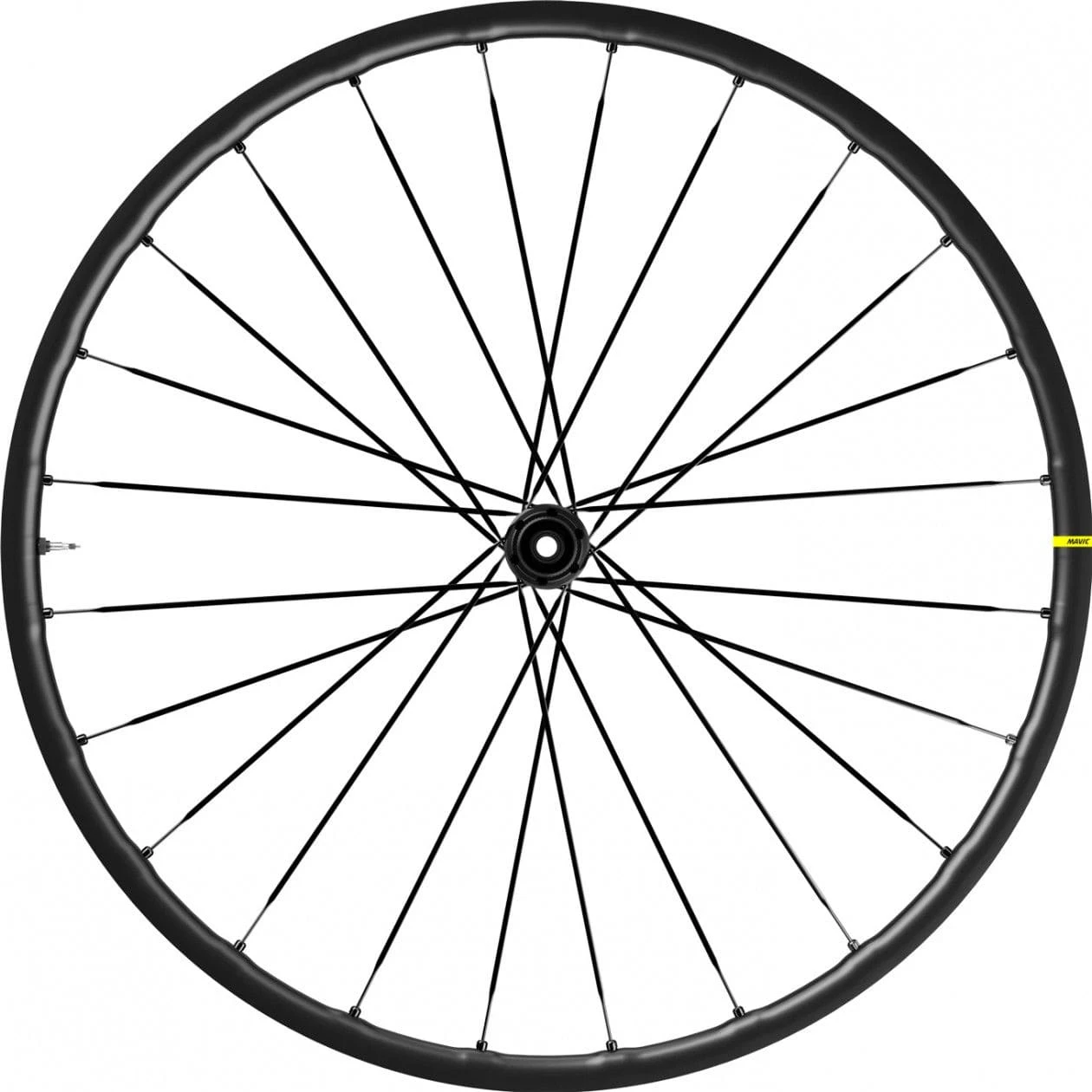

The Mavic Allroad SL wheel is the perfect road companion for your road bike. Gravel course, road hiking, cycle touring or commuting, the newest member of the Allroad family is faster, smoother and 140g lighter than its big sister, the Allroad Elite.

Lightweight aluminum rims are made using Mavic’s ISM 4D machining process, which removes excess material from the rim and keeps it around the spokes where tension is applied. The narrowed spokes further reduce weight and achieve an even more responsive wheel. The aerodynamics of the elliptical spokes can save up to 5 watts of energy while maintaining your speed. The wide rims (22mm internal) are compatible with 28 to 64mm tubeless tires for a smooth and efficient ride. The UST system is improved: the profile of the upper rim bridge has been reworked. Fitting and changing a tire has never been so easy. Thanks to Fore technology, the spokes are anchored without drilling the upper deck. No need for rim tape anymore! No more worries and unnecessary weight (another 30g less).

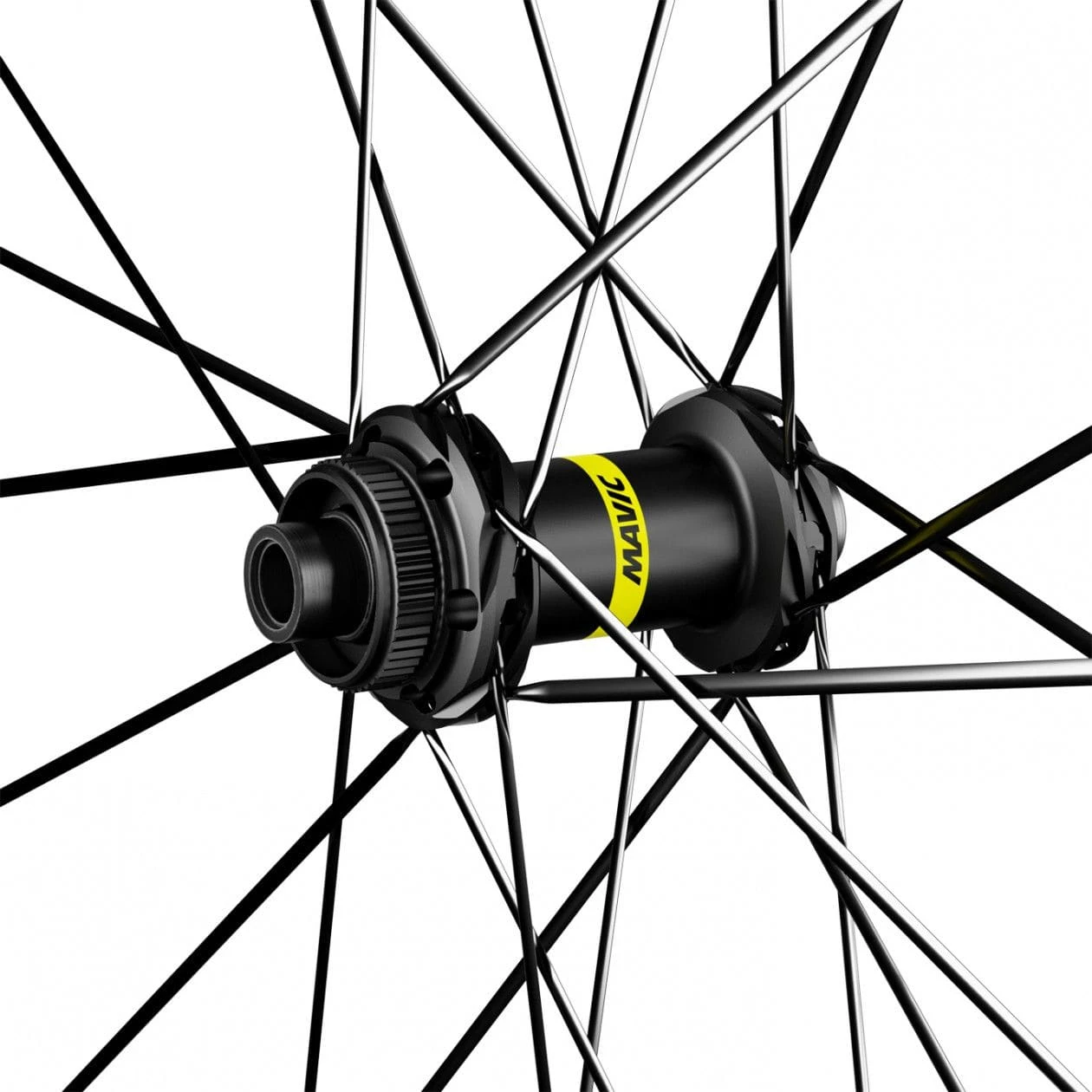

Mavic’s new Infinity hub platform helps optimize spoking, with carefully controlled spoke tension for optimal power transfer. The Instant Drive 360 freehub body guarantees, together with the automatic adjustment of the QRM Auto bearings, quick engagement, good rigidity and increased durability. Mavic Allroad SL wheels are only compatible with Center Lock brake rotors.

The + product:

For more speed and smoothness on difficult terrain, gravel and dirt : 22mm UST rims for smooth riding, with a wide variety of tires, from 28 to 64mm. Reduce your tire pressure for more comfort and control on rough roads with UST Road Tubeless technology. Who says no inner tube means less friction, more efficiency and grip, and better protection against pinch punctures.
Ultralight and Durable : The ISM 4D rim weighs only 440g. Patented lightweight aero spokes. The QRM Auto preloaded bearing requires no adjustment and guarantees high durability. No need for a rim tape thanks to the Fore drilling; 30 g less per wheel.
Lateral stiffness and vertical flexibility for dynamic steering : Fore technology guarantees the strength of the upper bridge of the rim, which reinforces its rigidity. 17mm axle and reworked hub. The ID360 freewheel body is 12 mm compatible, convertible to a quick release (15 mm axle option possible by replacing the axle).

Details:

Use :

ASTM Category 2: Roads and paths, jumps from a height of less than 15 cm.
To optimize the longevity of the wheels, Mavic recommends that the maximum weight supported by the wheels does not exceed 120 kg (bike weight included).
Recommended tire widths: 25 to 32 mm.
Max pressure : refer to the indications on the wheel and the tire. If they are different, choose the lowest.

Rim :

Material: Maxtal.
Height: 22 mm.
Specific profile for disc brake.
Weight reduction: ISM 4D.
Pneumatic: UST Tubeless and inner tube.
Internal width: 22 mm.
ETRTO size: 622 x 22TSS.
Profile without hooks.
Fore tubeless rim tape technology.
UST Tubeless technology.
SUP welding technology.

Spokes :

Material: steel.
Shape: straight, aerodynamic ellipticals, constricted (patented).
Nipples: aluminum, integrated Fore.
Number: 24 front and rear.
Shelving: front and rear crossed by 2, contactless.

Versions :

Disc standard: Center Lock.

Hubs :

Front and rear body: aluminum.
Axle material: aluminum.
Front: compatible with quick release and 12 x 100 and 15 x 100 thru axle.
Infinity hubs.
QRM Auto automatic bearing adjustment technology.

Delivered with :

UST valve and accessories.
User guide.

Weight :

Front wheel: 740 g.

Technologies:

Lightweight ISM 4D rim technology : Inter Spoke Milling 4 Dimensions Mavic’s exclusive patented process, the ISM 4D significantly reduces weight and inertia without compromising longevity. Faster acceleration, better handling and increased resistance; the perfect combination to make the most of your outings. The smooth profile also helps reduce aerodynamic drag.
Maxtal aluminum alloy : lightness and strength. A true Mavic exclusive, this specific aluminum alloy offers a better strength / weight ratio than the classic 6106 alloy.
Fore tubeless technology without rim tape : stiffer and more robust. Instead of being drilled, the lower rim bridge is pushed back on the inside and then threaded to allow the spoke nipples to be screwed in directly and to leave the upper bridge intact.
UST Tubeless technology : Universal Standard for Tubeless traction and control. Ready-to-drive tubeless system. The UST system improves traction, control and comfort while reducing inertia and the risk of punctures.
Instant Drive 360 Freewheel System : The new Instant Drive 360 freewheel system is ultra light and efficient. An oversized non-contact rubber seal reduces friction to a minimum, and a wide choice of adapters makes it compatible with all types of frames and axles.
QRM Auto Automatic Bearing Adjustment Technology : Mavic Auto Bearing Quality Our latest innovation. These cartridge bearings are obviously double sealed, with C3 internal clearance. Their preload is automatically adjusted to ensure, in the long term, a perfect rotation without any play.
SUP welding technology : a more robust and smoother “Soudé Usiné Process” connection. After strapping, the rim fitting is arc welded. The welded joint is then machined to obtain a smooth finish.
